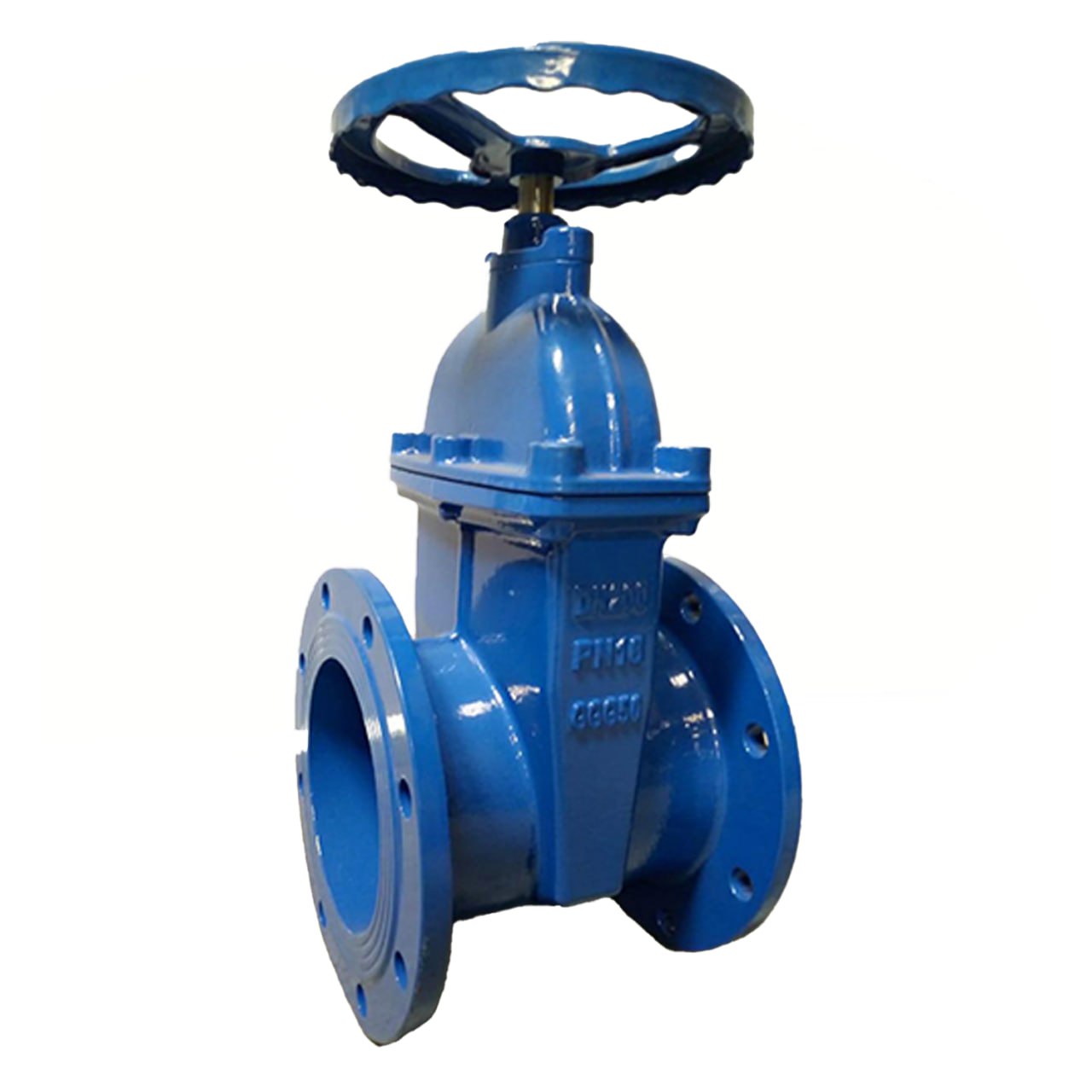

Ductile Iron Resilient Gate Valve
Product Features:
- Wedge fully rubber lined all over EPDM
- Optimum contact between body seating and rubber sealing surfaces on wedge.
- Eliminate gland leaks and reduce gland friction torque substantially
- Sealing surface are high quality smooth casting
- Suitable for Vacuum of up to 100%.
coasting
Electro statically fusion bonded epoxy coating inside and outside with Ral 5005 Gr. Blue color with coating thickness of min. 250 microns or As desired by customer.
Size Range : 50mm to 1000mm
Hydrostatic Testing:
| PN RATING | BODY | SEAL | TEST DURATION(minutes) | |
| BODY | SEAT | |||
| PN 10 | 1.5 Mpa | 1.0 Mpa | 5 | 2 |
| PN 16 | 2.4 Mpa | 1.6 Mpa | 5 | 2 |
Unique Chareacteristics:
- Bubble tight seats
- Minimum pressure drop
- Very low operating toque.
- Long life.
- Straight through flow passage.
- Operating temperatures for neutral liquids: 50’C

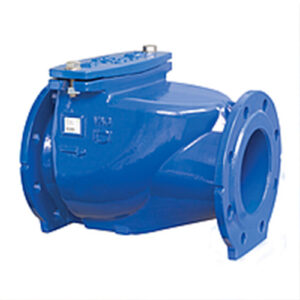

DI Non Return Valve Applications
Embark on a journey of reliability and efficiency with Ductile Iron (DI) Valves, where cutting-edge engineering meets the demands of modern fluid control systems. Crafted from resilient ductile iron, these valves stand as a testament to durability, adaptability, and high-performance standards.
Water & Sewage Features:
All casting parts, internal and outside, are Covered with Electrostatic epoxy powder coating (Fusion Bonded Epoxy).Min.250 pm. Swing type Disc Fully Coated with EPDM Rubber.
Hydrostatic Testing: PN 1.60

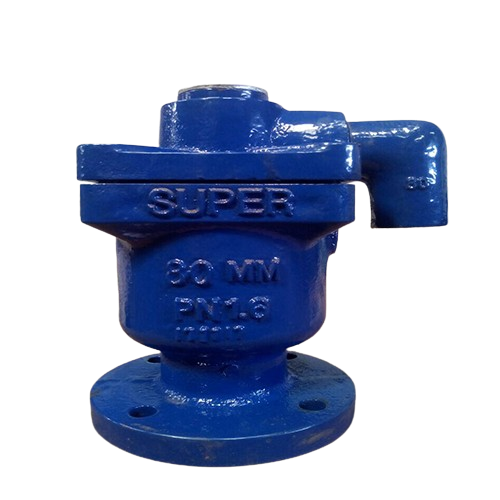

Ductile Iron Single Chamber Air Valve
